Description

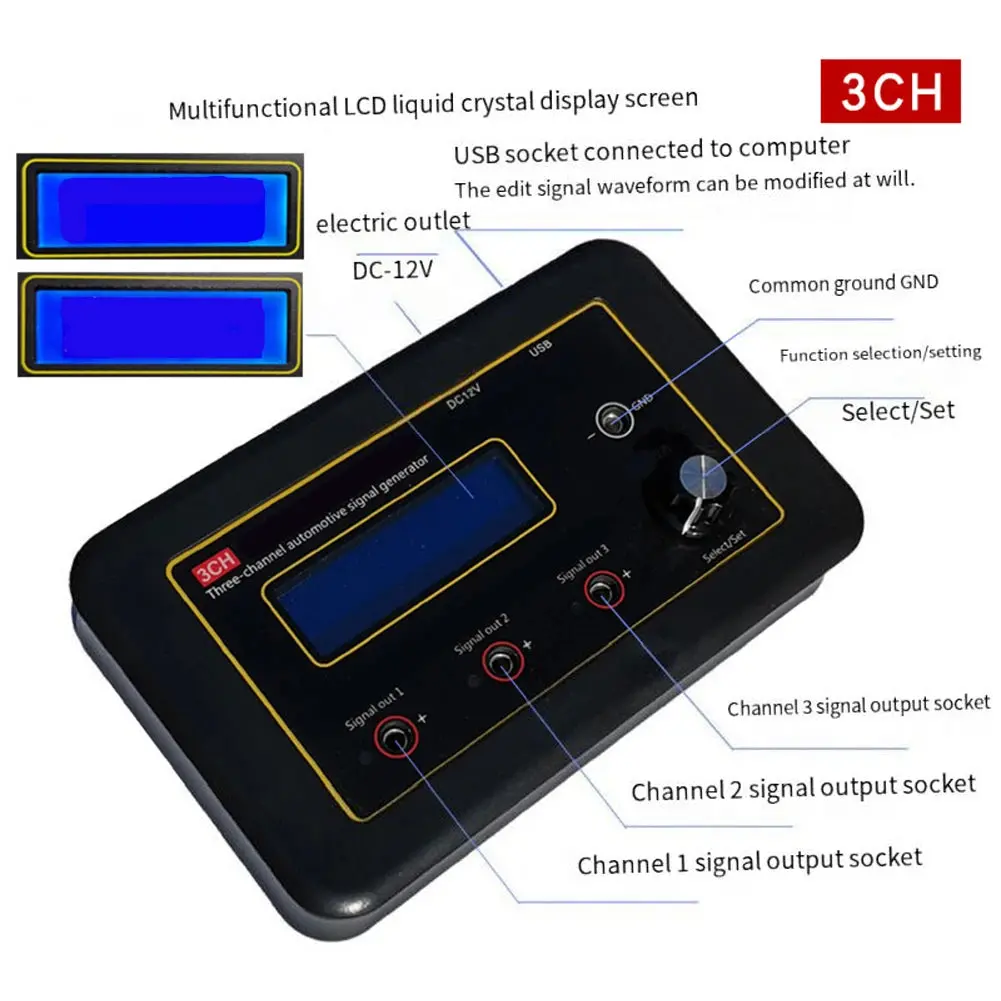

AM-3CH Three Channel Automobile Signal Generator
Features:
1. Output true standard sine wave signal to simulate various magnetoelectric sensors, and output standard square wave signal to simulate Hall sensor
2. Crankshaft and camshaft signal synchronous output for testing and repairing automobile ECU computer supports crankshaft and camshaft signal simulation for and diesel vehicles
3. If you make your own automobile ECU test bench, you can use it as a signal source
4. Connect a desktop or laptop computer, you can edit and modify the signal waveforms of the three channels output at will, and download them to the instrument
5. The instrument can store 60 types of crankshaft and camshaft synchronization signals, which can be directly called when used without connecting to a computer
6. The signal waveform amplitude and frequency can be adjusted at will
7. Setting the crankshaft missing tooth signal does not require connecting to a computer
8: Special equipment for detecting and repairing automobile engine computers (ECUs) Crankshaft and camshaft signal synchronous output waveforms can be edited at will
Specifications:
Part name: three-channel signal generator
Model: 3CH
Material: abs
Color: black
Size: as shown
Voltage: 12 (V)
Working temperature: -35-55 (℃)
Package contents:
1*Generator
4*Signal cable
1*USB cable
1*12V power cable
1*Computer board terminal
Note:
1. Please use the 12V regulated power supply or 12V car battery provided with the instrument. The voltage should not exceed 14V, otherwise the instrument will be damaged
2. Do not use inferior switching power supply, which will interfere with the signal waveform output by the instrument
3. This instrument is only used for automobile crankshaft and camshaft sensor signal simulation. It is forbidden to test various ignition coils, injectors, solenoid valves, motors, relays and other actuators, otherwise the instrument will be damaged
