Description

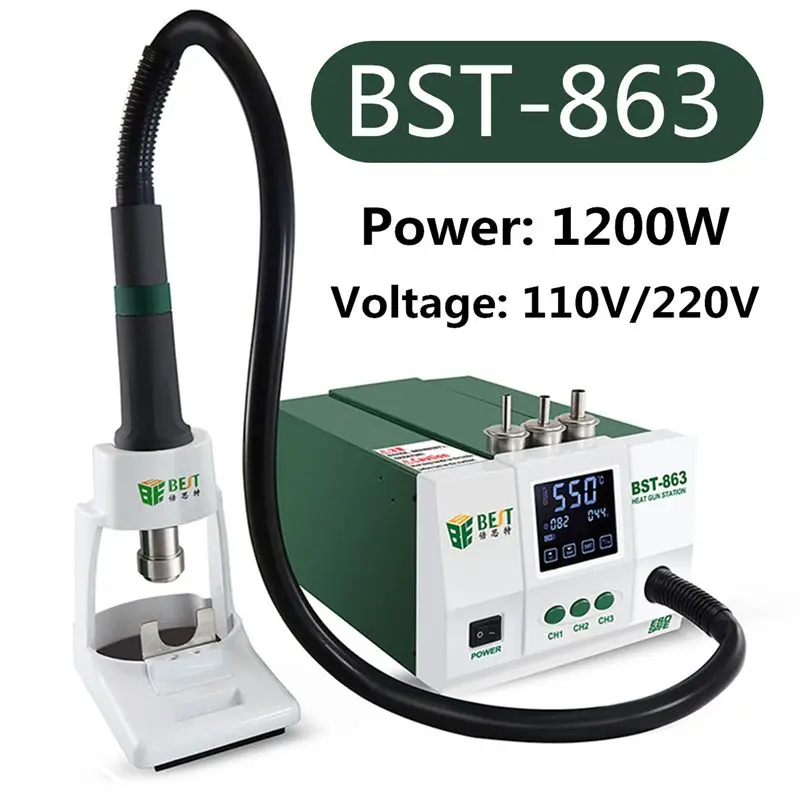

BEST BST-863 1200W 220V/110V Intelligent Digital LCD Touch Screen Heat Air SMD Rework Station 50/60Hz With 3 Memory Channels

Notice:

Please select the 110V or 220V voltage

Features:

1. This product belongs to industrial product of heating air to heat and solder components or board.

2. With 3 memory channels: CH1, CH2 and CH3. After custom setting the temperature, air volume and time of each channel, can be conveniently switched to the temperature required for heating and soldering components by one key.

3. The handle has sensor switch, as long as hold the handle, the system can quickly enter into the working mode. If the handle released into the handle frame, the handle will cool down to below 100℃ and enter standby mode, real-time and easy operation.

4. The parameters also can be custom set in the sleep state.

5. Sensors closed loop, zero-crossing triggering microcomputer temperature control, LCD touch screen. Heating up rapidly, the temperature accuracy and stability, without effect of the air flow, and truly achieved lead-free solder.

6. Using variable frequency brushless fan, adjustable air flow, large range, and can adapt to a variety of purposes

7. The system has automatic air cooling function, to extend life and protect the hot air heater.

Specifications:

Model: BST-863

Power: 1200W

Input Voltage: AC 220V/110V 50/60Hz

Temperature Range: 100℃~550℃ (212℉~999℉)

Display Type: LCD screen

Temperature Accuracy: ±1℃ (Static)

Air Volume Range: 1~100 Level

Noise: <45dB

Mainframe Size: 188(L) x 240(D) x 135(H)mm

Working Environment: 0℃~40℃ / 32℉~104℉

Storage Environment: -20℃~80℃ / -4℉~176℉

Storage Humidity: 35%~45%

Package Included:

1 x BEST BST-863 Soldering Station

1 x Bracket

1 x Power Line(We will send you a plug adapter acoording to your country)

1 x Ground Wire

3 x Nozzle Tip

1 x Instruction Manual
