Can-Am 250 Pre-Mix (MX/Qualifier) Rotax Engine Seal & O-Ring Kit — Viton or Standard Rubber Options, for Air-Cooled Models Up to 1981

Description

We offer this 250 Pre-mix with Regular Engine Seals, MX VITON Engine Seals or QUALIFIER VITON Engine Seals.

CAN-SOG-250PREMIXKIT / REGULAR ENGINE SEALS

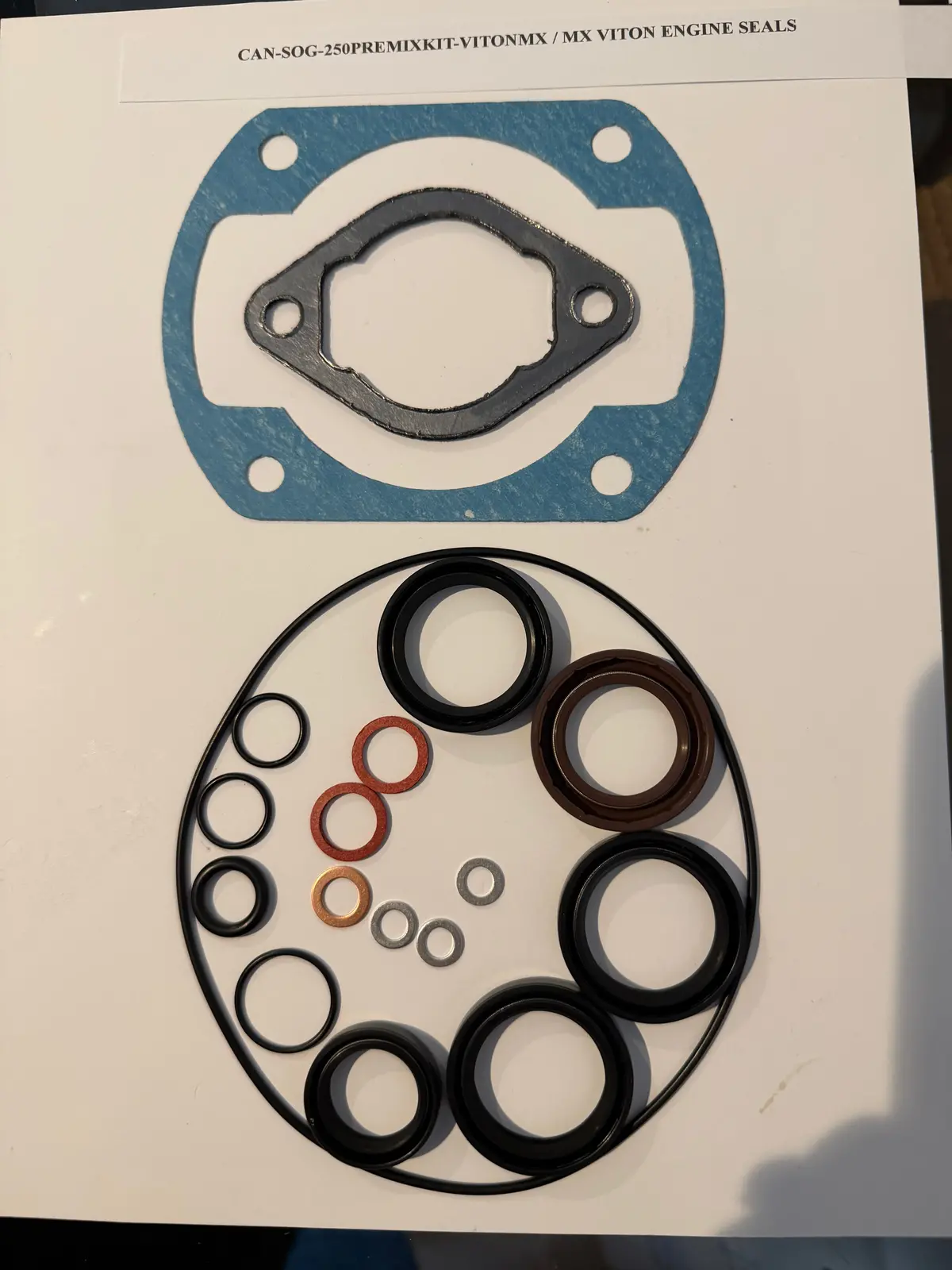

CAN-SOG-250PREMIXKIT-VITONMX / MX VITON ENGINE SEALS

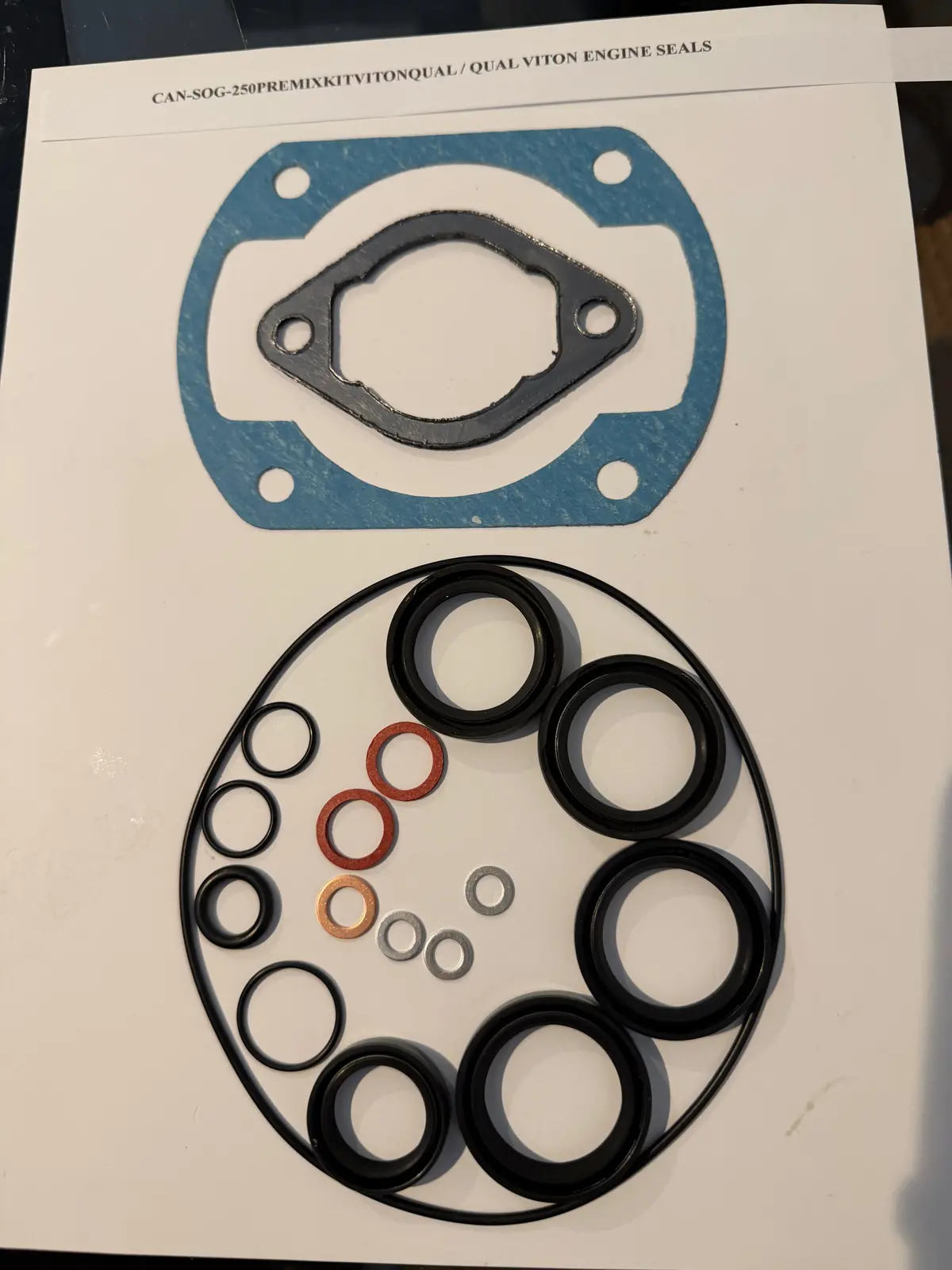

CAN-SOG-250PREMIXKIT-VITONQUAL / QUAL VITON ENGINE SEALS

We now provide 2 (was 1) inner kick start o’rings.

We also have NOS Exhaust Gasket, click here for more details.

This kit comes with remade exhaust gasket.

Seal and O’Ring Kit for Can Am 250 Pre-Mix Rotax Engines (air cooled only).

Can also be used on Kramer, SWM, Armstrong, ATK, CCM, Jawa, Puch and all other bikes with Rotax engines.

Parts can be sold separately, create your order by adding items to the cart, then let us know which of the following you want added via email and we will revise the invoice and resend it to you for payment. Or email us directly stating your order.

We also have the Bearing kits for this bike, click here for more details.

Kit Includes;

Seals (Nitrile) or Viton Engine Seal:

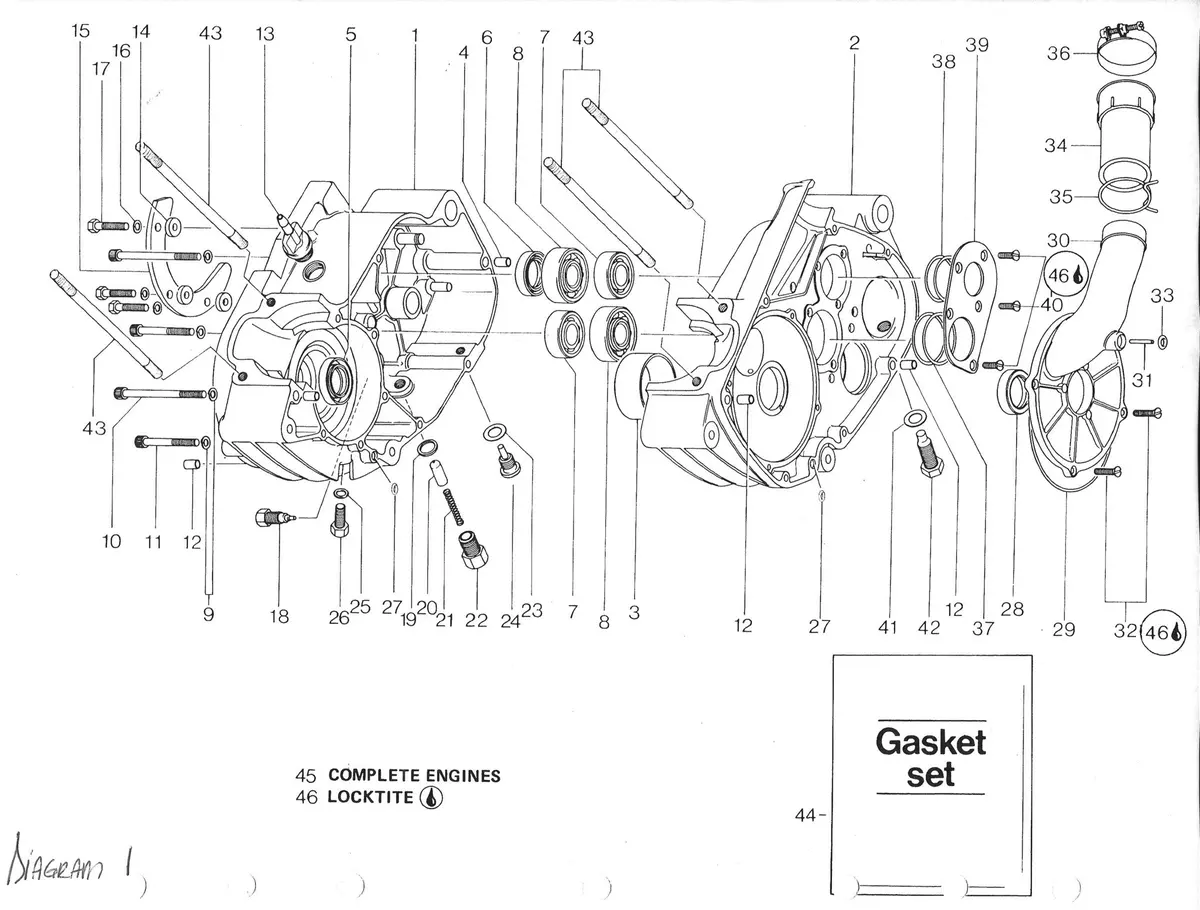

• 1 – Crankshaft on Flywheel Side MX – #5 Diagram 1
• 1 – Crankshaft on Flywheel Side Qualifier – #5 Diagram 1
• 1 – Crankshaft on Rotary Valve Cover – #28 Diagram 1
• 1 – Transmission Output Shaft – #6 Diagram 1
• 1 – Kickstart Shaft – #16 Diagram 3

O’Rings:

• 1 – Disc Valve Cover – #29 Diagram 1
• 2 – Inner Kickstart
• 1 – Outer Kickstart
• 1 – Output Shaft Bushing

 Gaskets

• 1 – Cylinder – #22 Diagram 2
• 1 – Exhaust – #31 Diagram 2

2 Fibre Gaskets:

• 1 – Engine Drain Plug – #41 Diagram 1
• 1 – Kickstarter Stop – #23 Diagram 1

4 Metal Gaskets:

• 1 – Crankcase Drain (Copper) – #25 Diagram 1
• 1 – Oil Level Plug Seal (Aluminum) – #32 Diagram 3
• 2 – Clutch Cover Seals (Aluminum – #28 Diagram 3
