Description

TSSOP8 Pogo PIN Adapter Chip Probe Spring loaded Touch Holder for in-circuit Dashboard Airbag SRS EEPROM Program 0.65mm 8 Position

Features:

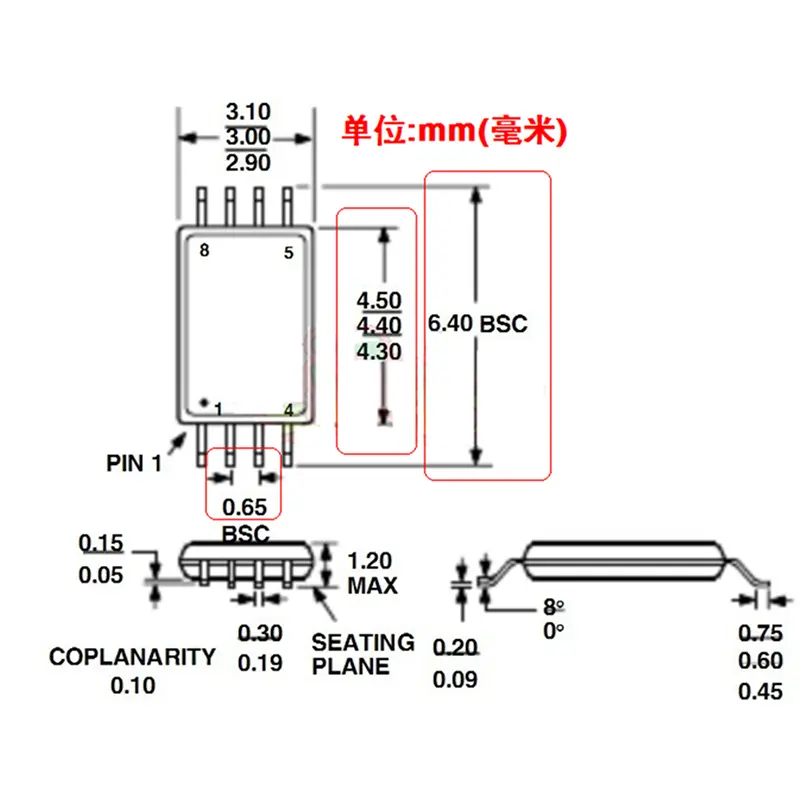

Pogo PIN Adapter fit for TSSOP8 Chip
Pitch: 0.65mm
Width: 4.4mm*3mm
Applications:
The instrument clusters manufacturers started to use TSSOP-8 size EEPROM to store the data on. Using this tool is simplifying the way of dealing with this tiny EEPROMs. Just position, press and hold the spear point over the EEPROM pins and read any 93xx, 25xx, 95xx series SMD in-circuit!
Helpful to program an EEPROM on many airbag computers or SRS modules such as Honda, Acura, Hyundai, KIA. The application is not limited to these manufacturers. Just clean the EEPROM from resign or other coating using acetone, and the EEPROM is ready for programming. No mess left around EEPROM, the connection is invisible! The programmer featuring pins connection check is recommended for use with this adapter. Pogo pins are tiny, handle and use with care!!!

Require SOP8 Probe Pogo, click Here

Require TSSOP8 Socket adapter, click Here

Notice: Require other Probe Adapter Clips, click Here
