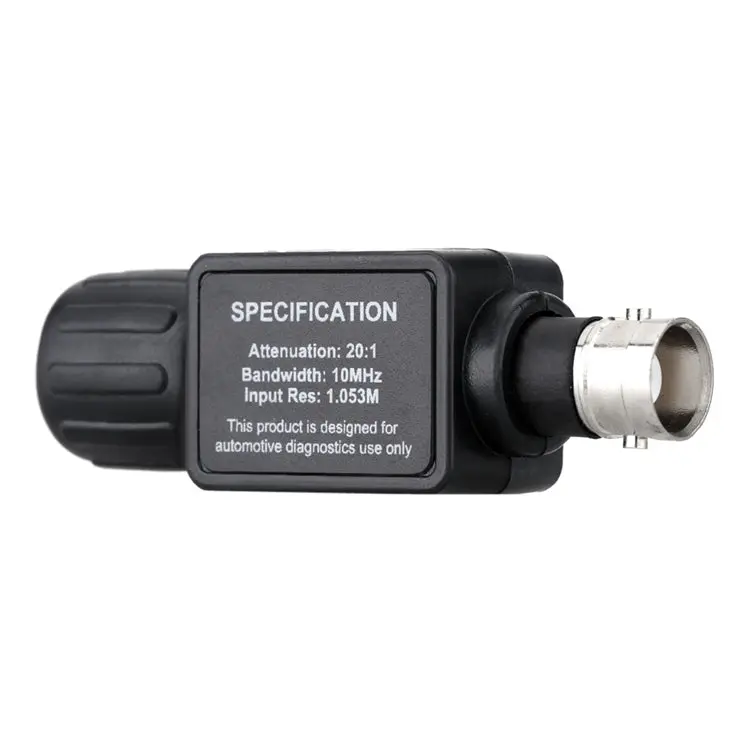

Hantek Official HT201 20:1 10Mhz Oscilloscope Attenuator for Automotive Diagnostics

Note:
this attenuator should not be used for any high voltage measurements other than fuel injectors and primary ignition.
This item has been designed to allow fuel injector and primary ignition waveforms to be measured using Hantek oscilloscope product
Passive attenuator with 20:1 attenuation.
If input a 20V signal, it can output a 1V signal.
By using this item, oscilloscope can measure voltage higher than its range(*20V)
Specifications:
Attenuation: 20:1
Bandwidth: 10MHz
Input Resistance: 1.053M
Item Size: 60 * 18 * 16mm / 2.36 * 0.7 * 0.6in
