Description

Lonsdor FT01-0020 312/433MHz Smart Key PCB for Toyota/Lexus Remote Control

Product Description

Lonsdor FT01-0020 312/433MHz Smart Key PCB for Toyota/LexusLonsdor FT01-0020 312/433MHz Smart Key PCB for Toyota/Lexus-—8A CHIP TYPE
Lonsdor KH100 handhold device supports FT01 button value switching between Hatch SUV and Trunk Sedan.

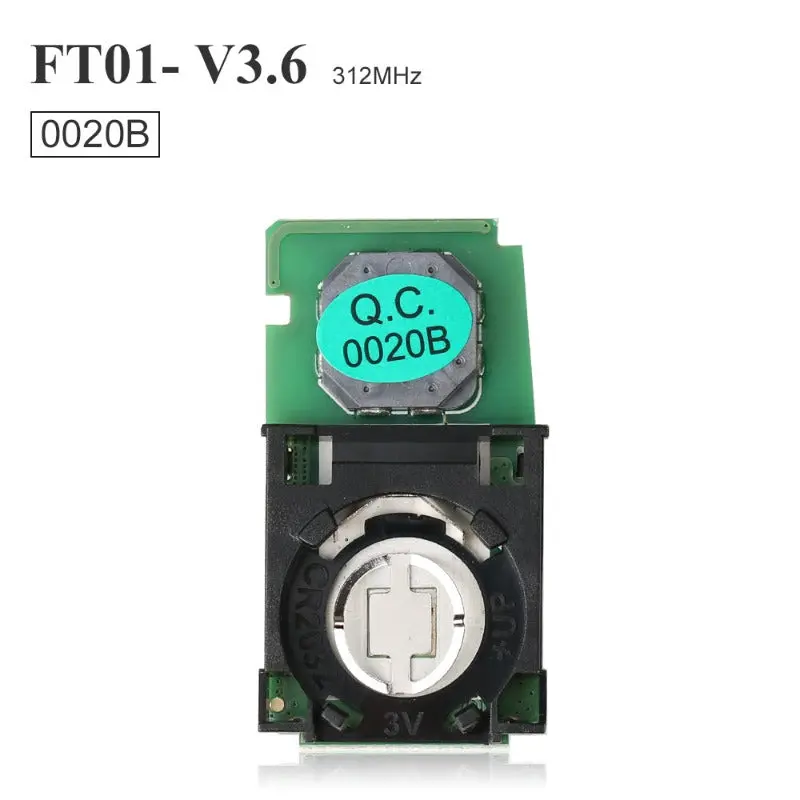

FT01-0020B 312MHz fit for USA/Middle East/Southeast Asia

FT01-0020C 433MHz fit for Europe/Middle East

How to unlock Lonsdor FT01 Smart Key?
The concept of unlocking: Toyota smart key, once been programmed to a car, it can not be programmed to another car, unless been unlocked.
Unlock steps
1. First press and hold the 1, 2, and 3 buttons at the same time (according to the order shown in the following figure), after the indicator is on, release the 3rd button.
2. Keep pressing the 1st and 2nd buttons. After the light is off, press the 3rd button again. Then the light is on and release the 3rd button.
3. Repeat the second step 10 times or more until the indicator light flashes continuously, then you can release 3 buttons.
4. After the indicator light stops, the smart card is unlocked and can be used as a new card.

Product Specifications

Package includes:
1pc x Lonsdor FT01 Series Smart Key for Toyota/Lexus FT01-0020
