2025 OBDSTAR ODO Master Full Version for Odometer Adjustment/ Oil Reset/ OBDII Functions Get Free FCA 12+8 Adapter with 13 Months Free Update

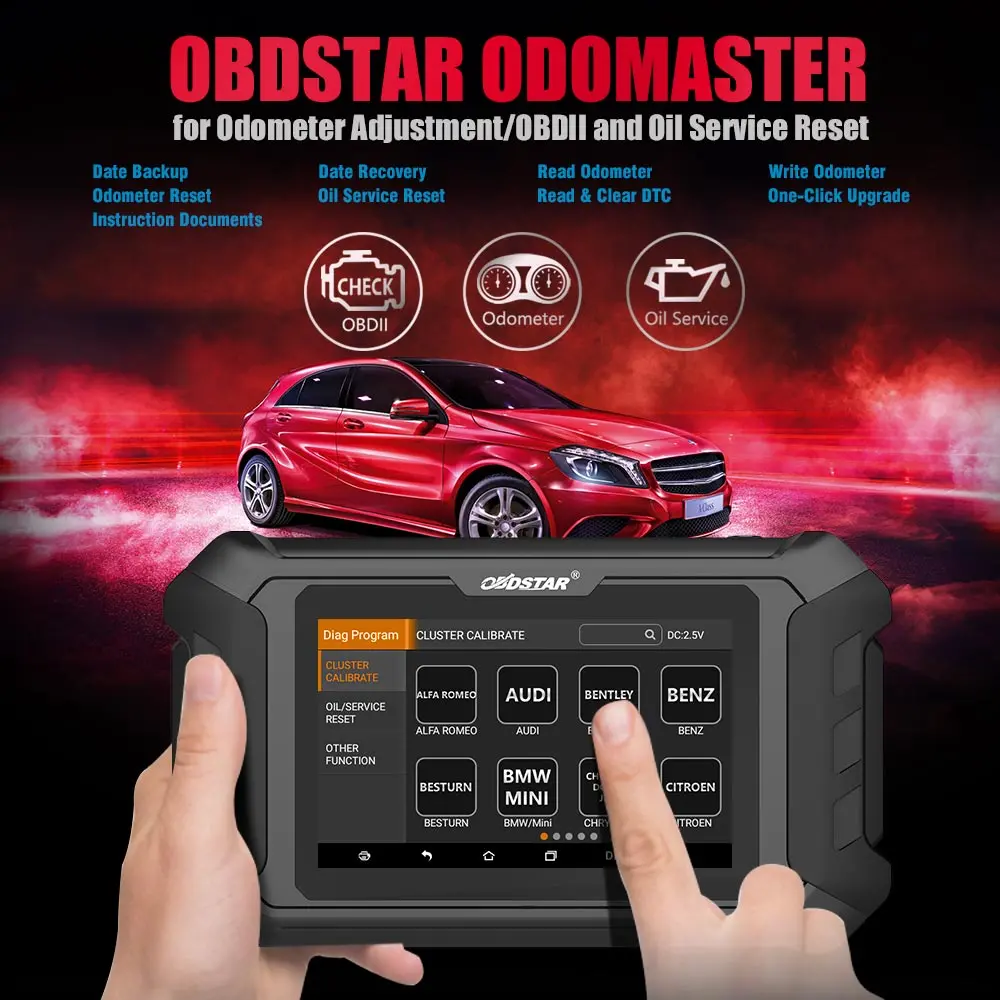

OBDSTAR ODO Master is a new Android based 5” tablet, specialized for cluster calibration. It inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use, wide model coverage, fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.
OBDSTAR ODO Master Highlights:
1. The update cycle is short and fast (updated every 2-3 days)
2. Free Update Online for one year, after one year it will cost $300 per year. Dealer Code: 860755B1
3. Strong competitiveness and industry advantage
4. Some models can support 20/21 years of car (such as GM/Chrysler)
5. Add a new help function as shown below: (Applicable to some models, R & D information is being update)
OBDSTAR ODO Master Functions List:
1. Via OBDII
2. Data Backup
3. Data Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage
OBDSTAR ODO Master Support Car Software list:
1. Do not work on BMW.
3. As for Mercedes Benz, there are many different dashboard models for the same chassis number, if the device says “not supported”, then it measn this car’s dashboard model is not supported, there is no solution for it.
4. As for 2018 and up FIAT/CHRYSLER/ALFA ROMEO vehicles, please work together with the FCA 12+8 adapter, otherwise, it won’t work.
Europe:
ALFA ROMEO,AUDI,BENTLEY,BENZ,BMW/Mini,CITROEN,PEUGEOT,FERRARI,FLAT,JAGUAR,LANCIA,LAND ROVER,MASERATI,OPEL,PORSCHE,RENAULT,VOLVO,IVECO,SKODA,SEAT,VW
Japan:
ISUZU,MAZDA,MITSUBISHI,INFINITE,NISSAN,SUBARU,TOYOTA
Korea:
HYUNDAI,KIA,SANGYONG
America:
FORD/LINCOLN,CHRYSLER,GM
China:
GEELY,BESTURN,CHANGAN,ROEWE MG,ROEWE
OBDSTAR ODO Master New Car Models Coveraged Comparison with OBDSTAR X300M:
| Car Models Coveraged | ODO Master | X300M | |
| Ford | Fiesta | 2017- | 2013- |
| Focus | 2019 | 2013- | |
| Transit | √ | × | |
| KA | 2018- | 2005- | |
| GM | Colorado | 2018- | 2010- |
| Cruze | 2017- | 2015- | |
| Escalade | 2018- | / | |
| XT6 | 2019 | ||
| Yukon | 2017- | 2014- | |
| Chrysler | Cherokee | 2018- | 2015 |
| RAM | 2018- | 2011- | |
| Durango | 2018- | 2014- | |
| Land Rover | Discovery 4 | 2015- | / |
| Range Rover Sport | 2017- | 2014 | |
| VW | MQB 2012-2014.06 | √ | × |
| MQB 2014.06- | √ | √ | |
| Renault | Captur | 2017- | / |
| Trafic IV | 2017- | / | |
| KIA CEED | 24C16 | √ | √ |
| D70F3423 | √ | √ | |
| D70F3XXX | √ | × | |
| D70F3421 | √ | × | |
| D70F35XX | √ | × | |
| NEC | √ | × | |
| NEC+24C16 | √ | × | |
| KIA Optima | 24C16 | √ | √ |
| D70F3536 | √ | √ | |
| D70F3421 | √ | × | |
| D70F352X | √ | × | |
| D70F35XX | √ | × | |
| NEC | √ | × | |
| NEC+24C16 | √ | × | |
| Nissan | Altima 2013 | √ | √ |
| KICKS 2017- | √ | × | |
| Mitsubishi | Outlander | √ | × |
| Triton 2015- | √ | × | |
OBDSTAR ODO Master Hardware Comparison with OBDSTAR X300M:
OBDSTAR ODO Master Specifications:
| Operation System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex A7 1.2GHz |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension Memory Card | 32G Micro SD (TF) card supported |
| Memory Capacity | 16GB |
| Storage Capacity | 32GB |
| LCD | 5.0 inch |
| LCD Resolution | 8000*600 |
| Touch Screen | Capacitive touch screen |
| Camera | 5 mega rear view camera |
| Wi-Fi | supported |
| Working Temperature | -20℃ ~ 55℃（14℉ ~ 131℉） |
| Storage Temperature | -20℃ ~ 70℃（-4℉ ~ 158℉） |
| Dimension | 140mm*89*mm*18mm |
| Weight | About 700g |
OBDSTAR ODO Master Package includes: 1pc x OBDSTAR ODO Master Main Unit1pc x Charger1pc x Multi-functional Jumper
1pc x Configuration List1pc x Packing box
