Description

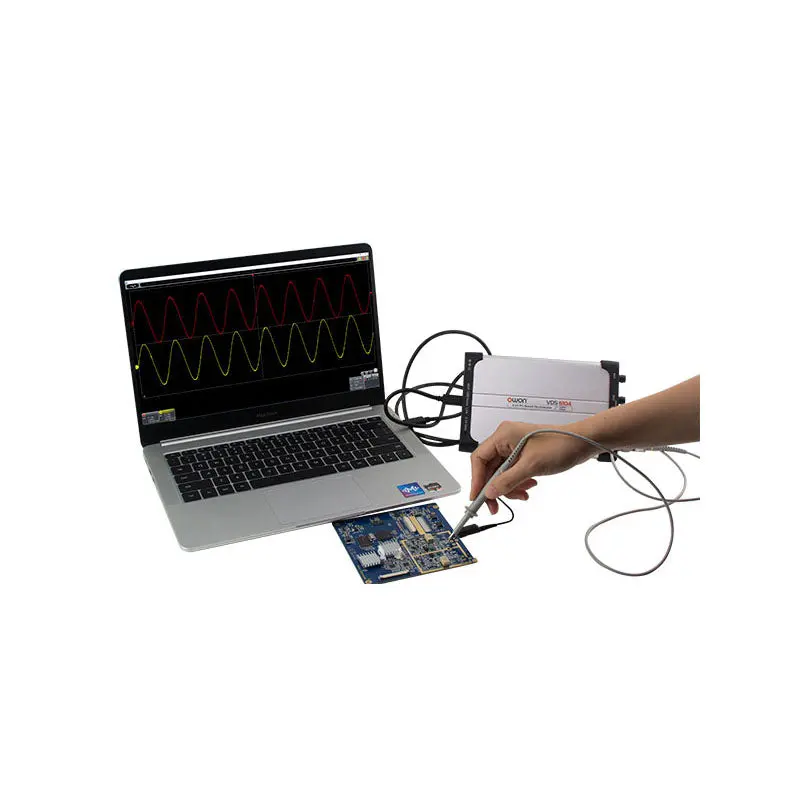

Original OWON VDS6104A 100MHz 4 Channels 10Mpts 1Gsps 40V PC USB Oscilloscope

Features:

+ 4 channels ultra thin design

+ Up to 100MHz bandwidth, and max 1GS/s real-time sample rate

+ 8 bits, 12 bits, 14 bits vertical accuracy, more accurate measurement

+ Max 10M record length

+ Friendly UI : X-Y, and waveform 2 views displayed on the same screen

+ SCPI、LABVIEW supported

+ Support the secondary development of windows / Linux / Android / Ios platform

+ USB typ-c power supply, faster data transmission, support 5-15v wide voltage power supply

+ WIFI unlimited transmission, more convenient to use. (WIFI module included )

Specifications:

Manufacturer	OWON
Type of oscilloscope	PC connected oscilloscope
Band	100MHz
Number of channels	4
Memory record length	10Mpts
Sampling	1Gsps
Max. input voltage	40V
Trigger	falling-edge,  pulse,  rising-edge,  slope,  video signal
Trigger modes	automatic,  normal,  single
Input coupling	AC, DC, GND
Vertical resolution	8bit,  12bit,  14bit
Dimensions	190x120x18mm
Weight	450g
Input impedance	1MΩ/15pF
Rise time	≤3.5ns
Input sensitivity	2mV/div…5V/div
Measuring instrument features	supports SCPI
Software	LabVIEW

Standard equipment

• adapter AC-DC
• backprobes pins (4 pcs.)
• USB cable
• user’s manual
• Wifi module

Interface

• LAN
• USB 2.0 host
• USB C

Supply voltage

• 5…15V DC

OWON VDS6104A User Manual PDF
