Rotron® High-Efficiency Regenerative Air Blowers

Description

Each “regeneration” imparts more pressure to the air. When the air reaches the stripper section at the outlet (the stripper is the part of the blower located between the inlet and the outlet in which the annulus is reduced in size to fit closely to the sides and tips of the impeller blades) the air is “stripped” from the impeller and diverted out of the blower. The pressures or vacuums generated by the one or two spinning, non-contacting, oil-free impellers are equal to those obtained by many larger multi-stage or positive displacement blowers.

Regenerative blowers are available in many configurations designed to meet specific applications.

Applications:

ROTRON® Chemical Processing (CP) Regenerative Blowers

Features & Benefits

Specifically designed for corrosive and hazardous applications, the blowers feature chemical-duty motors, Chem-Tough™ corrosion-resistant treatment and stainless-steel motor shafts. They can deliver airflow rates up to 1500 CFM and withstand pressures up to a maximum of 7 PSIG. For added safety, most models come equipped with explosion-proof motors. Made in the USA. Customizable.

• Rugged cast aluminum housing, cover, impeller and muffler tower

• Removable cast iron flanges bolted to a heavy-duty manifold

• TEFC motors on single-ended models

• Permanently sealed motor bearings for 20,000-25,000 hours life

• Chem-Tough surface conversion corrosion resistant treatment for all castings

• Teflon lip seal in a stainless-steel case standard for leakage containment to 5 cc/min or less

• Chemical-duty motors with 303 stainless steel motor shafts

• Stainless-steel hardware throughout

• Nickel plated flanges and muffler retainers

Markets & Applications

• Biogas & Landfill Digesters

• Wastewater Treatment Plants

• Other Corrosive Applications

Industry Leading

…Corrosion resistance with aluminum construction, stainless steel hardware, Chem-Tough treatment and Full C-face motors.

Explosion Proof

Motors rated for Class 1, Division 1, Group D areas at a minimum, making the motors the safest in the market.

Reduced Leakage

Offering a variety of sealing options to effectively contain hazardous gases, ensuring both safety and optimal utilization.

USA Made

ISO-9001-certified state-of-the-art facility in Whitsett, NC produces these high quality blowers that are certain to meet expectations.

---

ROTRON® Environmental (EN) Regenerative Blowers

Features & Benefits

Explosion-proof motors and the low-leak seal package come standard on these blowers, ensuring safety and preventing leakage. Their rugged design offers maintenance-free operation exceeding 25,000 hours, even in the harshest and most demanding environmental applications. Made in the USA. Customizable.

• Rugged cast aluminum housing, cover, impeller and muffler tower

• Removable cast iron flanges bolted to a heavy-duty manifold

• TEFC-XP motors on single-ended models

• Carbon steel shaft and zinc plated hardware

• Permanently sealed motor bearings for 20,000-25,000 hours life

• Heavy-duty cast aluminum manifold

• Spark resistant housing, cover, impeller, muffler tower and manifold are vacuum impregnated

• Teflon lip seal in a stainless-steel case standard for leakage containment to 5 cc/min or less

• Explosion-proof motors standard and available in a variety of world voltages

• All metal-to-metal surfaces are sealed with RTV sealant

Markets & Applications

• Biogas & Landfill Digesters

• Air & Gas Sampling

• Combustible Gas Handling

• Soil Vapor Extraction

• Other Hazardous Locations

Explosion Proof

Motors rated for Class 1, Division 1, Group D areas at a minimum, making the motors the safest in the market.

Low Leak

Standard sealing package prevents leaks at motor shaft. RTV compound blocks metal-to-metal leakage paths in blower.

Long Life

Rugged design offers maintenance-free operation exceeding 25,000 hours, even in the most demanding applications.

Customizable

Get the performance you need from the most comprehensive line, with options for customization to match your specific requirements.

---

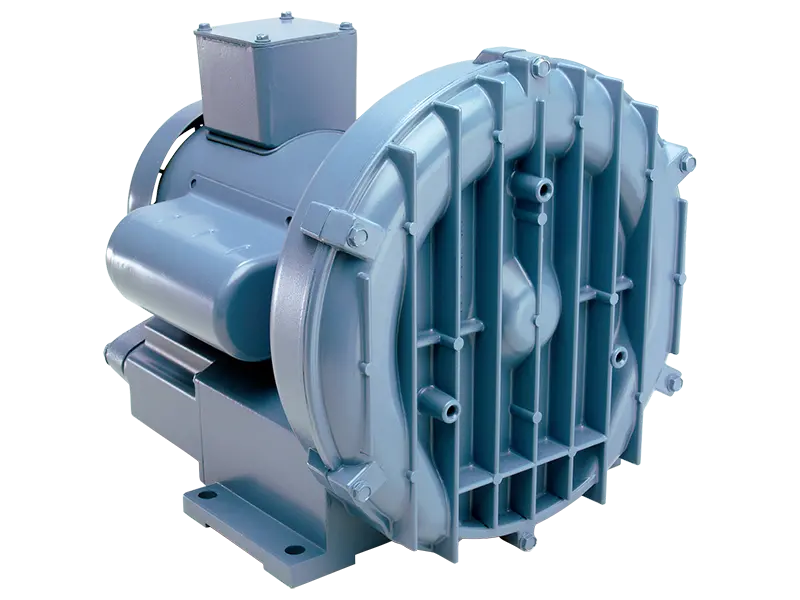

ROTRON® Industrial (DR) Regenerative Blowers

Features & Benefits

With Sparkproof construction, sealed motor bearings and aluminum castings, these blowers excel in industrial settings. Experience low noise, oil-free operation and maintenance-free reliability for over 25,000 hours. Made in the USA. Customizable.

• Rugged cast aluminum housing, cover, impeller and muffler tower

• Removable cast iron flanges bolted to a heavy-duty manifold

• TEFC-XP motors on single-ended models, ODP motors on all double-ended models

• Carbon steel shaft and zinc plated hardware

• Permanently sealed motor bearings for 20,000-25,000 hours life

Markets & Applications

• Air-Assisted Inflation or Support

• Electric Cooling

• Material Transport, Separation & Collection

• Media Agitation & Aeration

• Parts Blow Off & Drying

• Vacuum Pickup or Hold Down

Tried & True

With a proven track record spanning decades, this brand delivers unmatched performance across diverse applications.

Customizable

Get the performance you need from the most comprehensive line, with options for customization to match your specific requirements.

Long Life

Rugged design offers maintenance-free operation exceeding 25,000 hours, even in the most demanding applications.

USA Made

ISO-9001-certified state-of-the-art facility in Whitsett, NC produces these high quality blowers that are certain to meet expectations.

---

ROTRON® Remote Drive (RD) Regenerative Blowers

Features & Benefits

Motorless models, incorporating DR/EN/CP/SL blower features, offer variable flow performance in a compact design. Experience low noise, oil-free operation and maintenance-free reliability for over 25,000 hours. Made in the USA. Customizable.

• Rugged cast aluminum housing, cover, impeller and muffler tower

• Precision balanced impellers for low vibration operation

• Chemical process features available to meet your requirements

Markets & Applications

• Biogas & Landfill Digesters

• Electric Cooling

• Material Transport, Separation & Collection

• Media Agitation & Aeration

• Parts Blow Off & Drying

• Vacuum Pickup or Hold Down

Tried & True

With a proven track record spanning decades, this brand delivers unmatched performance across diverse applications.

Customizable

Get the performance you need from the most comprehensive line, with options for customization to match your specific requirements.

Long Life

Rugged design offers maintenance-free operation exceeding 25,000 hours, even in the most demanding applications.

USA Made

ISO-9001-certified state-of-the-art facility in Whitsett, NC produces these high quality blowers that are certain to meet expectations.

---

ROTRON® Application Specific Regenerative Blowers Spa, SE, SL and MD

Features & Benefits

Specifically engineered for commercial spa, high temperature, natural gas and gasoline vapor recovery applications. Experience low noise, oil-free operation and maintenance-free reliability for over 25,000 hours. Made in the USA. Customizable.

Markets & Applications

• Air & Gas Sampling (SE & SL Models)

• Natural Gas Boost (MD Models)

• Spa (DR404/454/505/513/656)

Specialized

Specifically engineered for commercial spa, high temperature, natural gas and gasoline vapor recovery applications.

Customizable

Get the performance you need from the most comprehensive line, with options for customization to match your specific requirements.

Long Life

Rugged design offers maintenance-free operation exceeding 25,000 hours, even in the most demanding applications.

USA Made

ISO-9001-certified state-of-the-art facility in Whitsett, NC produces these high quality blowers that are certain to meet expectations.
