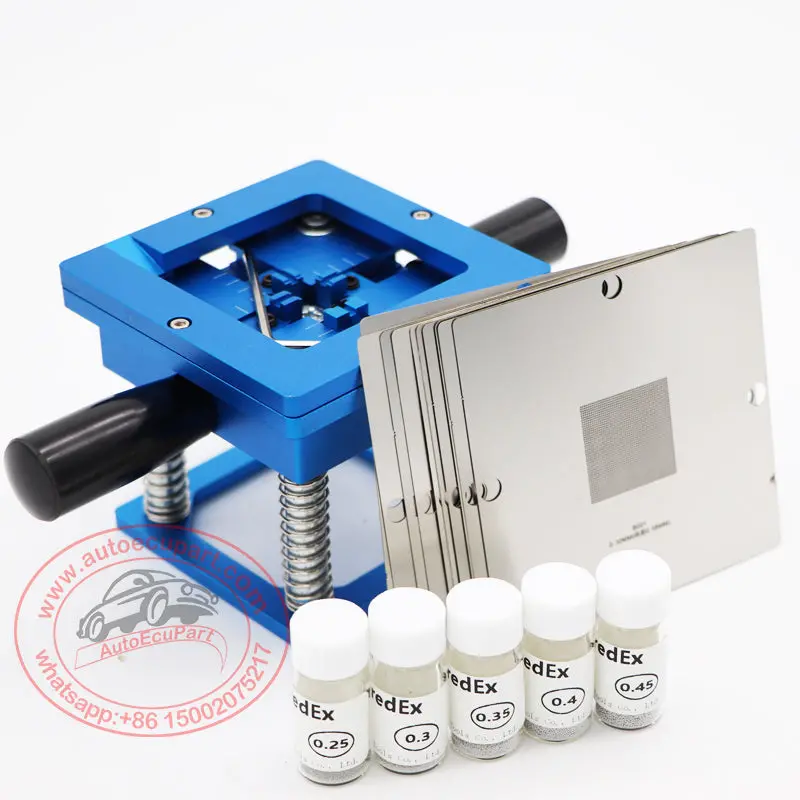

Universal Adjustable BGA Solder Base Holder with 12-Piece 90×90 mm Reballing Stencil Set for Mobile Phones, Laptops, ECUs, and IC Chips

Description

Universal Adjustable BGA Solder Base Holder with 12pcs Reballing Stencil for Mobile Phone CPU ECU IC Chip BGA rework station

Applications

Universal Adjustable BGA Solder Base Holder

new self-locking BGA reballing station, made of Aluminum alloy structure

with automatic centering function, rotating spiral disk, four folders block locking chips without a single adjustment

positioning accuracy standards, clamping speed, high efficiency!

Stencil dimensions: 80*80mm and 90*90mm

Advantages:

1. For both 80mm and 90mm stencils

2. No need use wrench to adjust the height, just use finger up and down

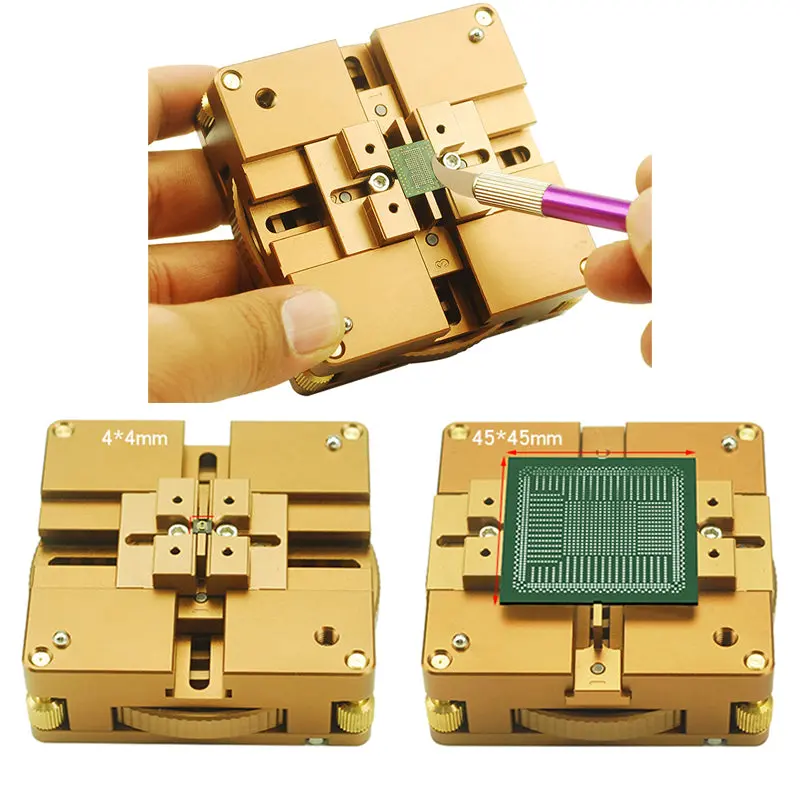

3. Suitable for rectangle chips, and very small chip 4*4mm, maximum chip 45*45mm

4. High precision for adjusting the chip, magnet inside, auto fix, more fast and convenient .

Simultaneous Adjustment on 4 Sides

Auto Locking

Accurate Position

Easy Operation

Rotator

Compatible with 80mm and 90mm Stencils

90*90mm  Stencil list 12PCS

Universal stencil for 0.25mm ball, pitch 0.5mm (90*90mm)
Universal stencil for 0.3mm ball, pitch 0.6mm (90*90mm)
Universal stencil for 0.35mm ball, pitch 0.65mm (90*90mm)
Universal stencil for 0.4mm ball, pitch 0.8mm (90*90mm)
Universal stencil for 0.45mm ball, pitch 0.8mm (90*90mm)
Universal stencil for 0.5mm ball, pitch 0.8mm (90*90mm)
Universal stencil for 0.55mm ball, pitch 1.0mm (90*90mm)
Universal stencil for 0.6mm ball, pitch 0.9mm (90*90mm)
Universal stencil for 0.6mm ball, pitch 1.0mm (90*90mm)
Universal stencil for 0.6mm ball, pitch 1.1mm (90*90mm)
Universal stencil for 0.65mm ball, pitch 1.0mm (90*90mm)
Universal stencil for 0.76mm ball, pitch 1.27mm (90*90mm)





Packing List:

1pcs  BGA reballing station

12pcs 90*90mm Stencils
