FACTORY CORRECT APPEARING – Made in the USA!

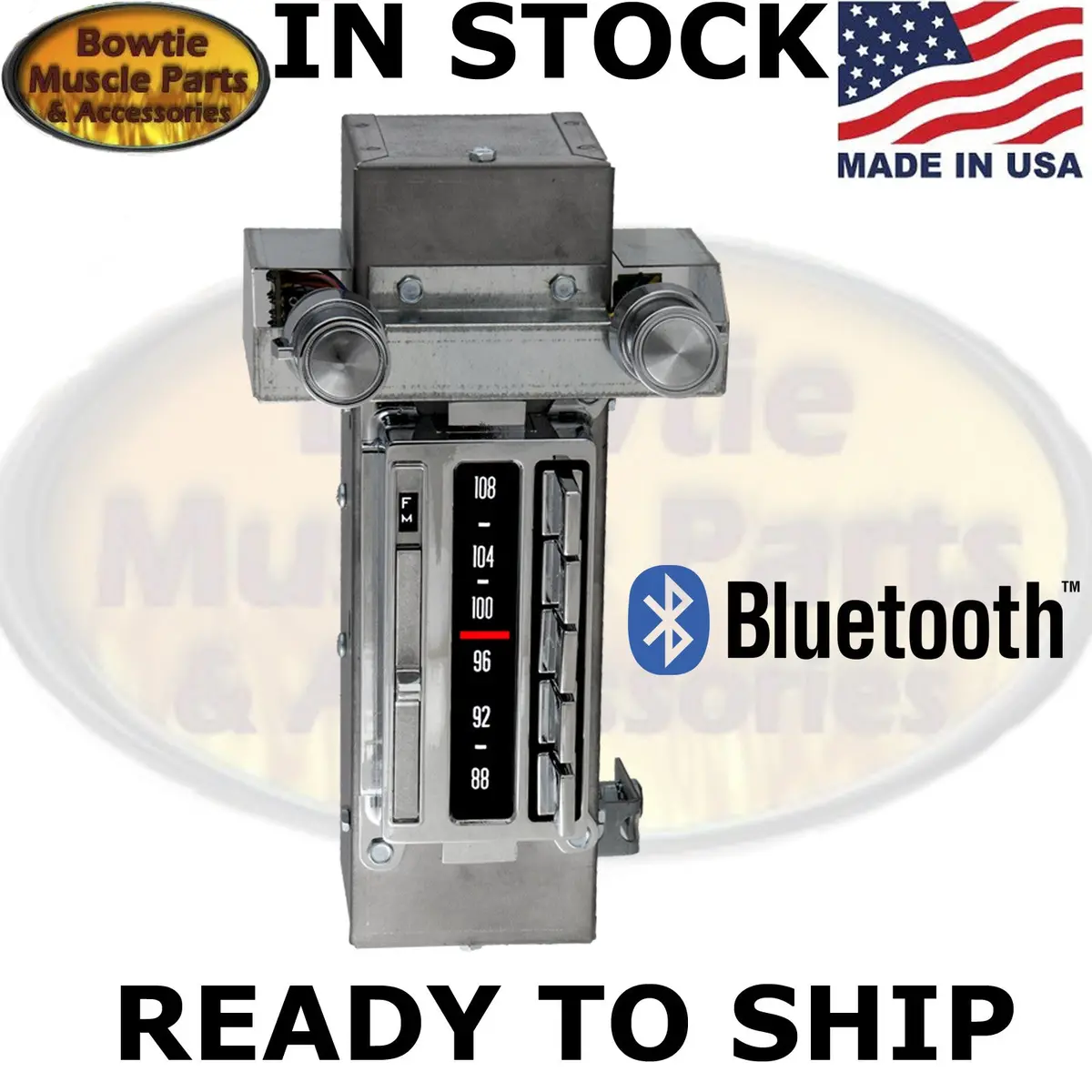

1966 AM FM STEREO RADIO – BLUETOOTH READY!
(note: 1970 Radio shown for reference only)
Finally, a reproduction radio that actually looks like the original! Bowtie Muscle Parts is proud to offer this high quality reproduction of the 1966 AM/FM Wonderbar Radio. Why settle for a goofy looking, sideways, cheap imitation or an original that costs twice as much without these features? Trying to find a nice, working original today would cost a small fortune! Just check out the pictures and you will quickly see this stereo is nowhere near as big, heavy and bulky as the original.
Factory correct for the following:
- 1966 Corvette (One year only specific radio)
Check out the following specs:
Bluetooth 3.0 EDR Compliant!
Weighs less than two pounds! Originals were over 5 lbs!
Maximum power = 180 watts RMS (45 watts x 4 speakers 4Ω, 14.4V, 1kHz)
Best results with modern speakers.
Uses original antenna
Fits in dash without any modifications
Chrome-plated die-cast nose piece, band selector bar and pushbuttons look all original
Correct knobs
Slidebar duplicates action of original (slide the bar UP and the AM dial is displayed; slide the bar DOWN and
the FM dial is displayed)
10 presets (5 AM, 5 FM)
Only 3″ depth behind dash!
Analog controls look and feel like the original radio
All controls easily accessible. Volume, Bass, Treble, Balance, Fader and Tuning from original-looking controls
LED dial lights will never need replacing
Digitally tuned AM/FM/Stereo front end provides stable, high quality reception
7/16″ shafts on controls for mounting (same size and thread as original shafts)
Memory retention for pushbuttons and user settings more than 40 years
Additional line outs and output options: 3 RCA jacks for left channel, right channel, and sub-woofer
3.5 mm phone jack for input from iPod, satellite radio or MP3 player
Switch selectable for 1,2,3 or 4 speakers
Switch selectable for North America or Europe mode
Includes a 6 foot 3.5mm male-to-male auxiliary cable with every radio
Built in microphone for HFP (hands-free profile)
HSP, A2DP, AVRCP profiles supported.
Place/answer calls or stream your favorite programs while maintaining original appearance!
You deserve the best – don’t settle for less! Now you can have your cake and eat it too!
Installation tip:

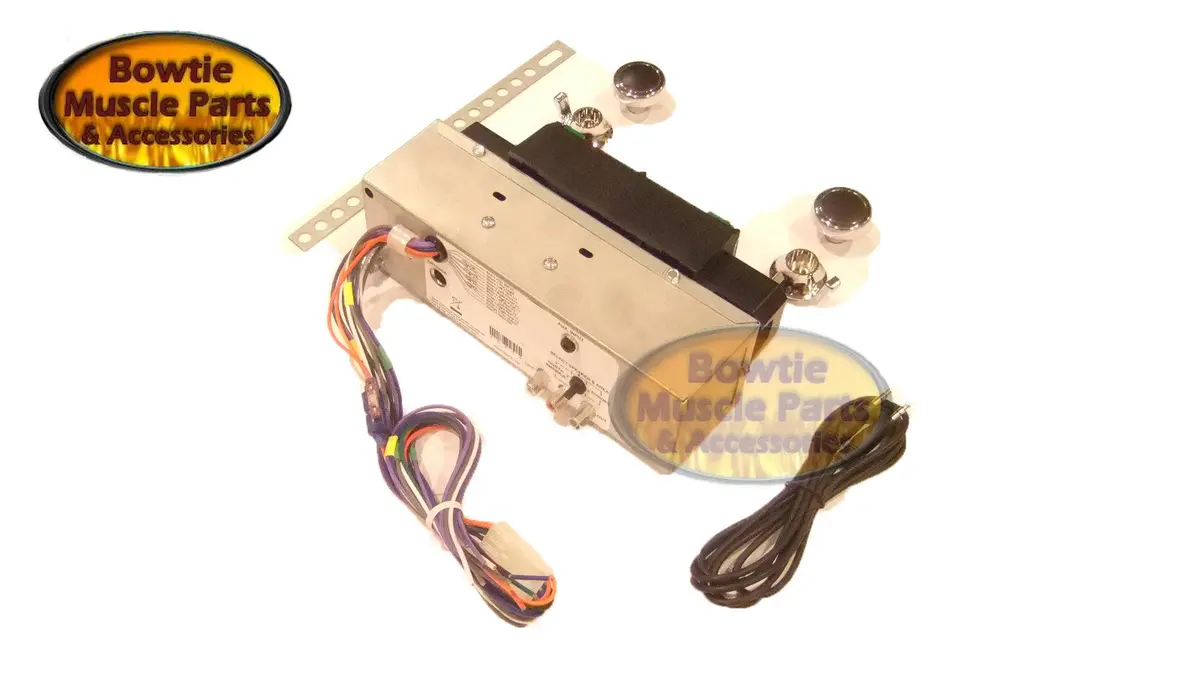

Uses a 12 pin rectangular Molex connector (included). These radios will not fit with the original harness. There is no need to splice into your original harness. We do not allow the original connection to hook up with our radios because the original speaker wires were grounded and did not have a four speaker option most of the time. Simply wire into your favorite set of aftermarket speakers and enjoy fantastic modern sound quality without giving up the original appearance!
This very hard to get radio is in stock and ready to ship!
|
