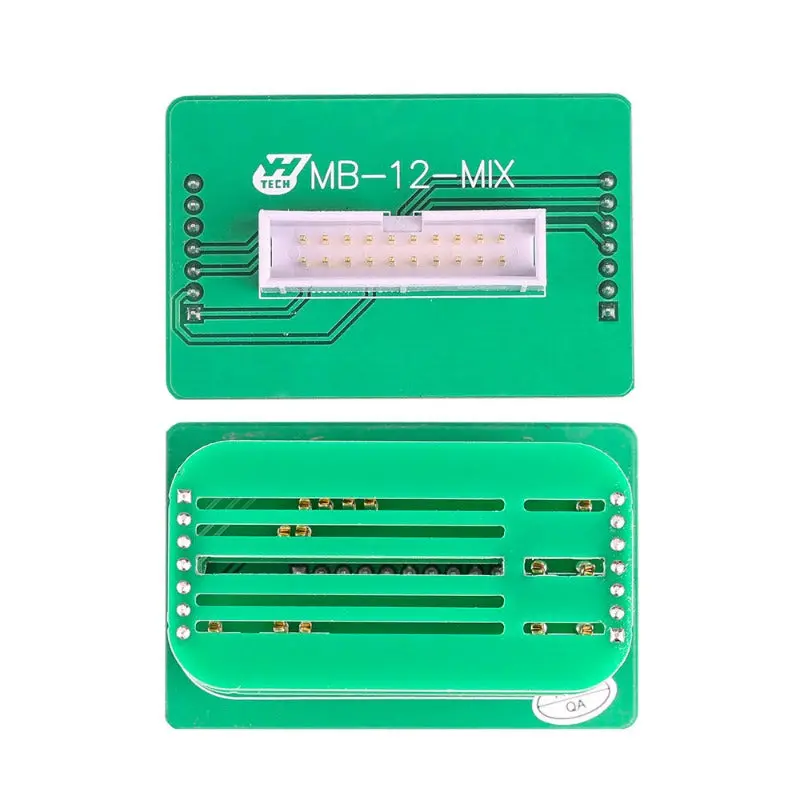

Yanhua ACDP MB 12-in-1 Interface Board – Compatible with ACDP Module 18

Description

Product Description

Yanhua MB 12-in-1 Interface Board Adapter Support refreshing Mercedes-Benz CR4.XX/CRD2.XX/CR5/ME9.7/SMI271KE2.0/CRD.11/SIM271DE2.0/CR3.XX/SIM4LKE/MED17.7X/CR6/SIM266 DME, need work with module 18 togetherYanhua ACDP MB 12-in-1 Interface Board Adapter Working with ACDP Module 18
Notice: it can not work alone, must work with ACDP Mercedes Benz DME/ISN Refresh Module 18 together
Support Models:
Support refreshing Mercedes-Benz CR4.XX/CRD2.XX/CR5/ME9.7/SMI271KE2.0/CRD.11/SIM271DE2.0/CR3.XX/SIM4LKE/MED17.7X/CR6/SIM266 DME
1. Mercedes-Benz dedicated interface, no wire seperation, quick plug and unplug
2. Automatically identifies and connects 12 models of Mercedes-Benz DME
3. Pin automatic detection, safe and reliable, to avoid wiring errors damaged the circuit

How is Yanhua Mini ACDP connected to MB 12-in-1 interface board adapter on bench?
Step 1. Please prepare ACDP, adapter, interface board and DME.
Step 2. Connect the interface board correctly to the DME interface as shown.
Step 3. Short the CAN resistor on the adapter to the “CAN-R Join”.
Step 4. Connect ACDP, adapter, interface board and DME.
Package Includes:
1pc x Yanhua Mini ACDP MB 12-in-1 Interface Board Adapter
